Credentials

The Credentials page allows you to securely store and manage API keys and service credentials for KAI-Flow.

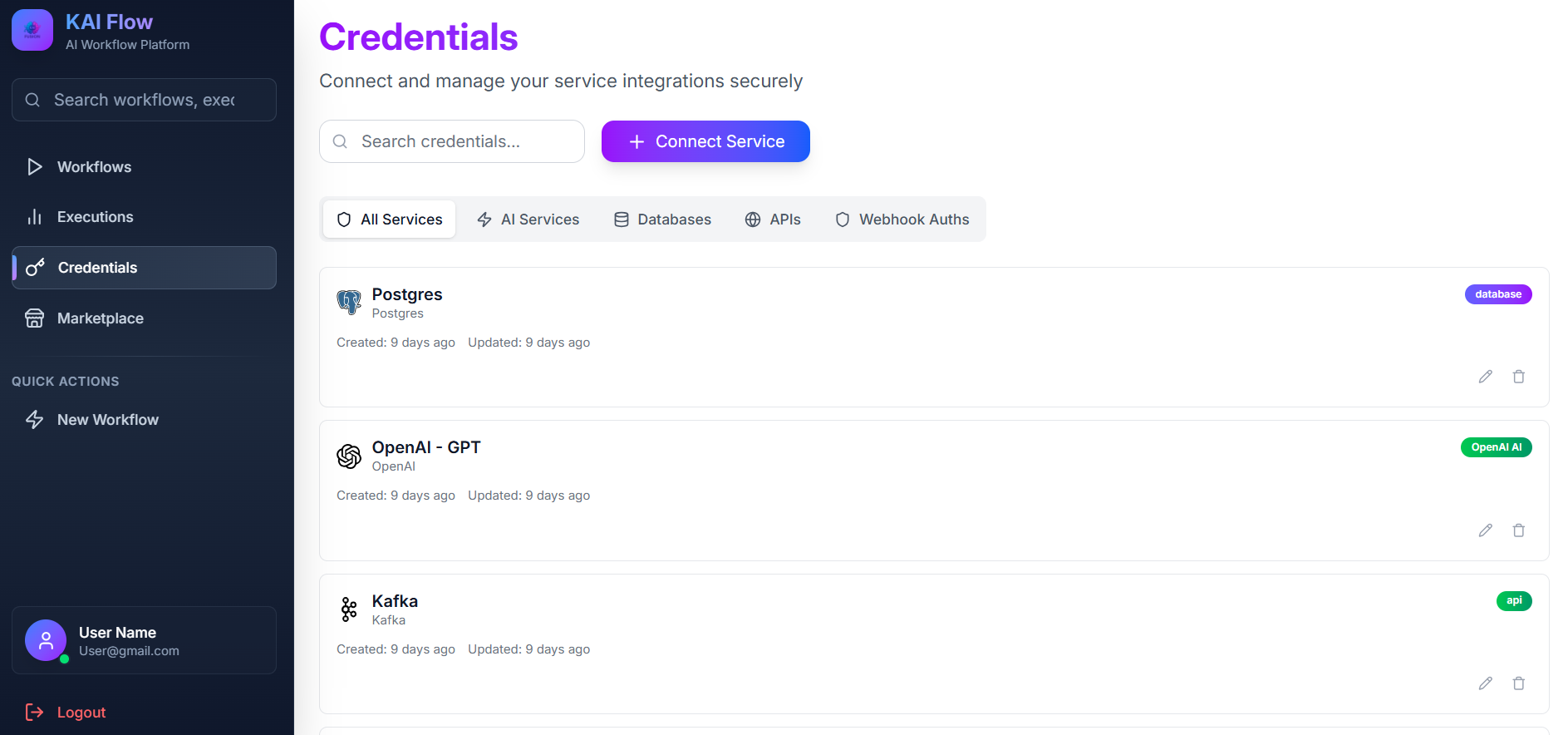

Credentials Page

Service Category Tabs: Allows you to filter credentials by service type. Available categories include AI, Search, Database, and Cloud.

Search: Used to filter credentials by name.

Add Credential: Opens the service selection modal to add a new credential.

Credentials Grid: Displays all saved credentials. Each credential card shows the service icon, credential name, service type, creation date, and management actions. You can use the Edit button to update a credential or the Delete button to remove it.

Adding New Credentials

To add a new credential:

  1. Click Add Credential.
  2. Select a service type from the list.
  3. Enter the credential details, including a name, API key, and any service-specific fields.
  4. Click Save.

Supported Services

KAI-Flow supports the following credential types, organized by category:

AI Services
  • OpenAI: Stores OpenAI API keys for GPT models and embeddings.
    • API Key (required) — Your OpenAI API key (starts with sk-)
  • OpenAI Compatible: Connects to self-hosted models or alternative endpoints (e.g. OpenRouter, vLLM, DeepSeek, LM Studio).
    • Base URL (required) — The endpoint URL for the compatible service
    • Model Name (required) — The model name/identifier (e.g. llama3-70b-8192)
    • API Key (required) — The authentication key for the service
    • Skip SSL Certificate Verification (optional) — Enable when using self-signed certificates
  • Cohere: For embeddings and reranking capabilities.
    • API Key (required) — Your Cohere API key
APIs & Search
  • Tavily Search: Tavily AI search API for web search capabilities.
    • API Key (required) — Your Tavily search API key (starts with tvly-)
Databases
  • Postgres: PostgreSQL database with vector extension (pgvector) for storing embeddings and retrieval.
    • Host (required) — PostgreSQL server hostname or IP address
    • Port (required) — PostgreSQL server port (typically 5432)
    • Database Name (required) — Name of the database to connect to
    • Username (required) — Database username
    • Password (required) — Database password
Storage
  • MinIO / S3 Storage: S3-compatible object storage credentials for MinIO or AWS S3.
    • Endpoint URL (required) — Host and port for your MinIO/S3 instance (e.g. localhost:9000 or s3.amazonaws.com)
    • Access Key (required) — Access key ID
    • Secret Key (required) — Secret access key
    • Use SSL (HTTPS) (optional) — Enable if the endpoint requires secure connection
Message Brokers
  • Kafka: Apache Kafka connection credentials for producing and consuming messages.
    • Client ID (required) — A unique identifier for the Kafka client
    • Brokers (required) — Comma-separated list of Kafka broker addresses (e.g. host1:9092,host2:9092)
    • Security Protocol (optional) — Protocol used to communicate (PLAINTEXT, SASL_PLAINTEXT, SASL_SSL, SSL)
    • SASL Mechanism (optional) — SASL mechanism for authentication (PLAIN, SCRAM-SHA-256, SCRAM-SHA-512)
    • SASL Username (optional) — SASL credential username
    • SASL Password (optional) — SASL credential password
    • SSL CA Certificate Path (optional) — File path to CA certificate
Webhook Authentication
  • Basic Auth: Username and password credentials to secure incoming webhook trigger endpoints.
    • Username (required) — Username for Basic Authentication
    • Password (required) — Password for Basic Authentication
  • Header Auth: Header-based keys (e.g., custom token headers) to secure incoming webhook trigger endpoints.
    • Header Name (required) — The HTTP header name (defaults to Authorization)
    • Header Value (required) — The secret value that must match the custom header

Security Note: All credentials are encrypted at rest using a master key (CREDENTIAL_MASTER_KEY). They are decrypted only when needed during workflow execution.
